  • Asymmetric Snap Hook
  • Asymmetric Snap Hook

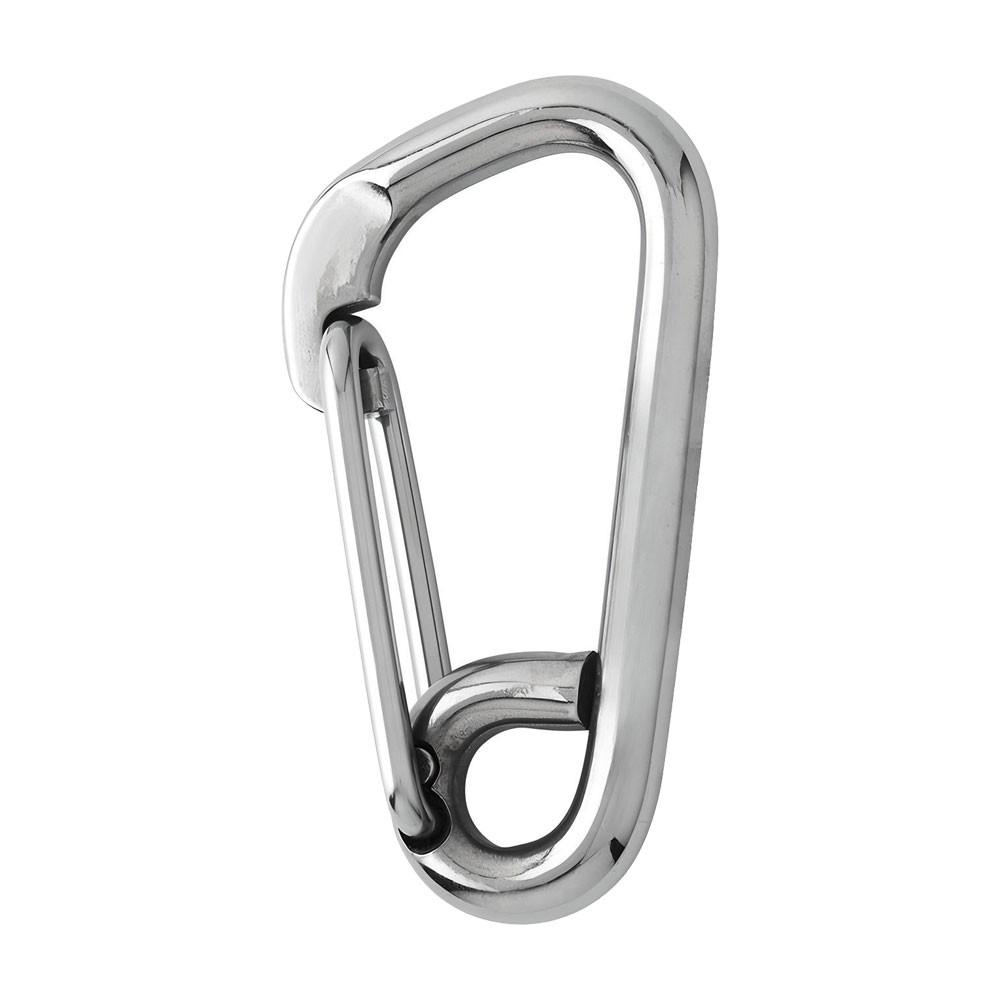

Asymmetric Snap Hooks

$8.95
SKU:
40216
Availability:
Typically in stock, shipment within 1 business day.
Quantity:

Product Description

High quality and economical alternative to the Wichard® asymmetric stainless steel snap hook. Hook body is forged/cast from Type 316 Stainless Steel for maximum corrosion resistance and features a torsion spring gate.

  • Forged (D06 & D08) or cast (D10) from 316 Stainless Steel for corrosion resistance.
  • Asymmetric shape supports higher loads.
  • Integrated eye for webbing or rope attachment.
  • Each hook is stamped with the Working Load Limit (WLL).
  • Available in three (3) common sizes, see chart below.
Part Number Overall Length Dimension A Dimension B WLL*
40216-D06 (Forged) 2-3/8"
(60 mm)
0.43"
(11 mm)
0.31"
(7 mm)
330 lbs
(150 kg)
40216-D08 (Forged) 3-5/32"
(80 mm)
0.50"
(12 mm)
0.52"
(13 mm)
770 lbs
(350 kg)
40216-D10 (Cast) 4"
(100 mm)
0.70"
(18 mm)
0.67"
(17 mm)
990 lbs
(545 kg)

*   WLL = Working Load Limit

Other Details

Packaging:
Bulk Format, No Retail Packaging
Unit of Measure:
Each
